Discoblox Grindblocks - IN STOCK - ON OFFER!

Discoblox Grindblocks - IN STOCK - ON OFFER!



📢📢📢 WHILE STOCKS LAST! ONLY ON SIZES SHOWN 📢📢📢

DISCOBLOXXXX

It is what you all have been waiting for! Discoblox are Aussie made, easy to install grind blocks compatible with almost any plate. #Discoblox will support sliding, stalling and dropping in on coping and are suitable for ramp and bowl skaters of any level.

There are a few different styles of Discoblox. Most plates will use the 'standard' blox. However some plates need alight adjustments. Please check below

Falcon plates - If using your discoblox with Falcon plates please select the 'lowrider' product instead. You can also use a Lowrider with these plates but it's not a requirement: Reactor Pro, Reactor Fuse, Rival, Sunlite plates

CIB Grind Trucks - If you plan to use your Discoblox with grind trucks please select the 'lowrider' product instead.

Arius Plates - If you plan on using your Discoblox with Arius plates then you will need the Iceblox option.

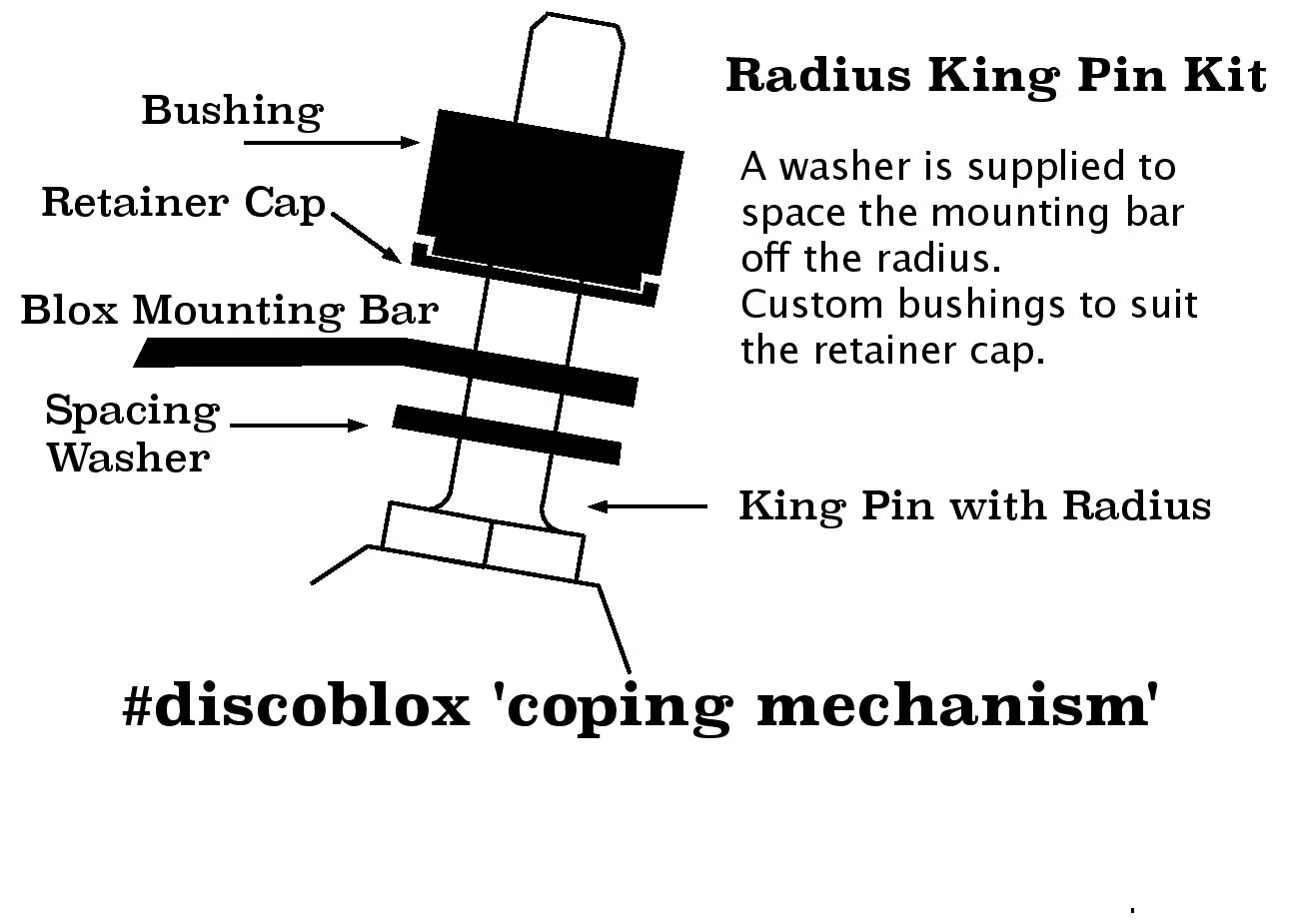

Reactor, Revenge, Rival - These plates have a radius (slightly wider kingpin base) which will require the radius king pin kit to fit. Please add this kit when you place your order. Click HERE.

Sure Grip Avenger: The arms of the mounting bar just need to be bent to the shape of the plate.

Roll-Line plates: You will need a Roll-Line modified set. Please mention this in the order notes in the Cart Screen.

Bont plates: Unfortunately due to the 20-degree kingpin angle Discoblox won't be compatible with Bont plates!

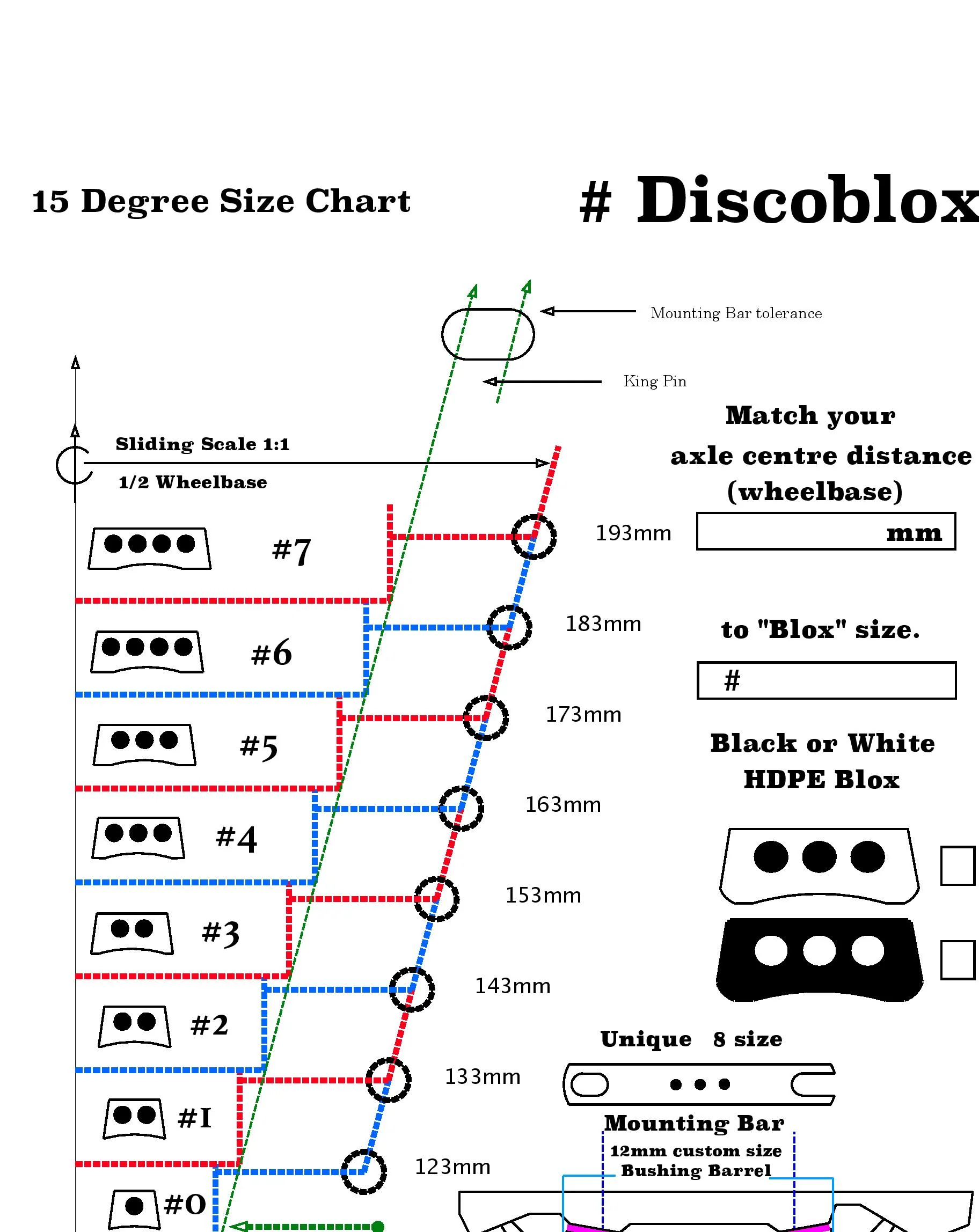

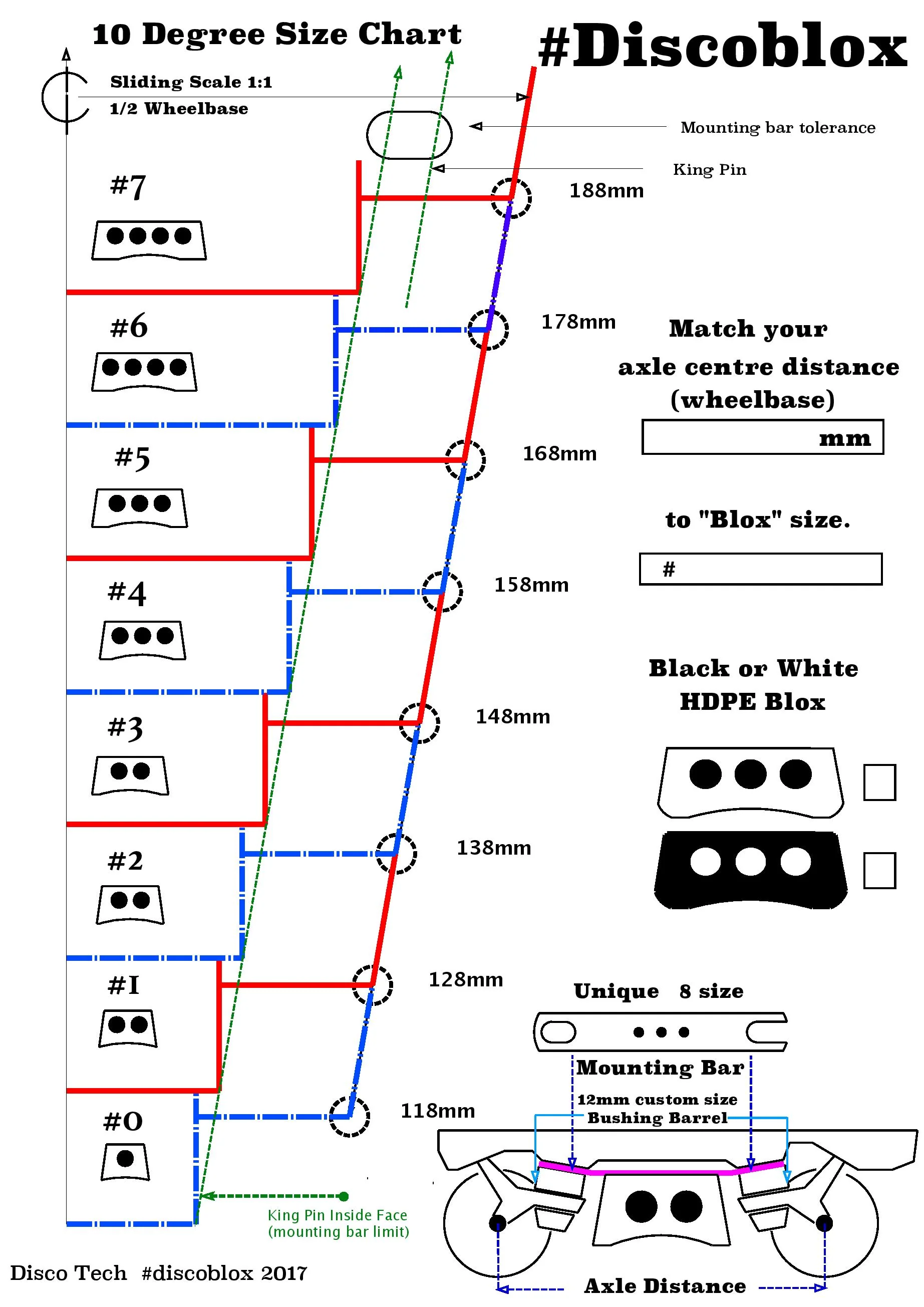

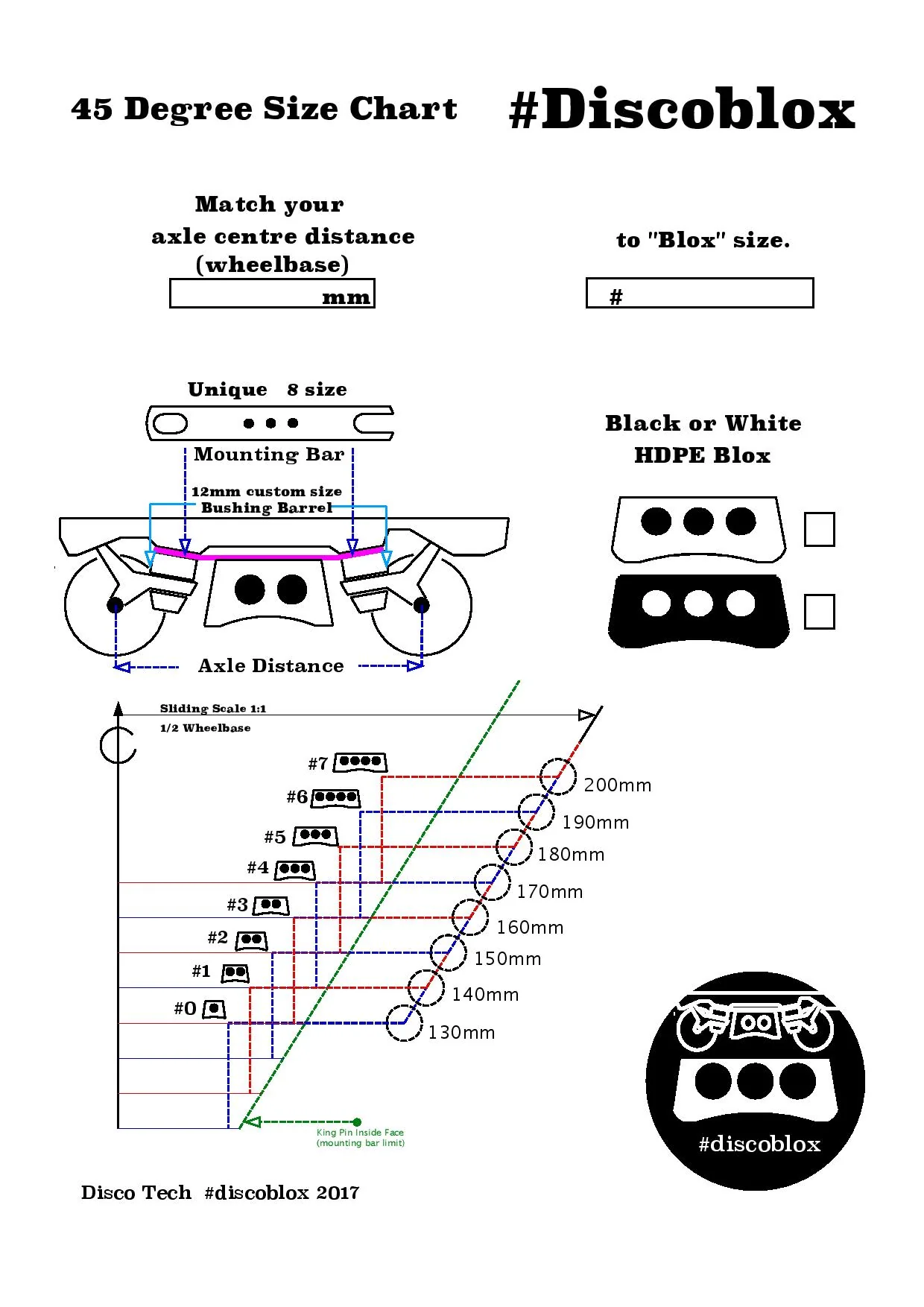

What's my size?!

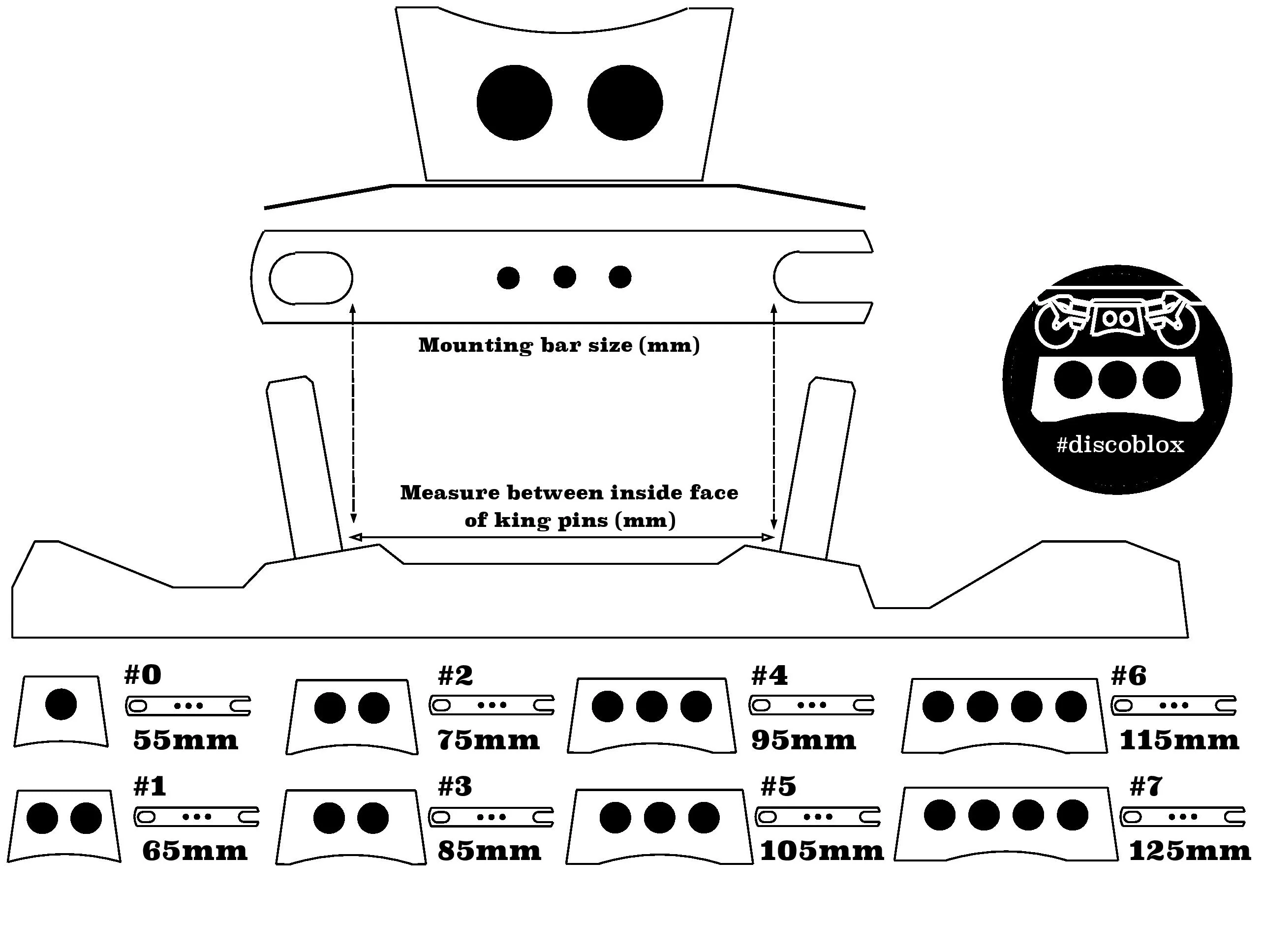

To work out what size you need simply measure the distance between the inside faces of the kingpin and use the sizing charts to find out the size you require.

  • Avanti Plate size Wheel base (mm) #discoblox size
    10 degree 1 118 0
    Suregrip 2 128 1
      3 138 2
      4 148 3
      5 158 4
      6 168 5
      7 178 6
      8 188 7
      9 198 8



    Avenger Plate Size Wheel base (mm) #discoblox size
    45 degree 0 130 n/a
    Suregrip 1 140 0
      2 150 1
      3 160 2
      4 170 3
      5 180 4
      6 190 5
      7 200 6
      8 210 7



    Athena Plate size Wheel base (mm) #discoblox size
    Bont 5 127 1
    20 degree 5.25 133 1
      5.5 140 2
      5.75 146 2
      6 152 3
      6.25 159 3
      6.5 165 4
      6.75 171 4
      7 178

    5
    20 degree 7.25             184                            6
      7.5 191 7
      7.75 197                        7



    Beach Bunny Plate size Wheel base (mm) #discoblox size
    Marvel plate 400 (US2) 100 0
      450 (US3) 115 0
      500 (US4) 125 1
      550 (US5) 140 2
      600 (US6) 150 3
      650 (US7) 165 4
                                 650 (US8)                                     4
      700 (US9)   5
      750(US10)   6





    Ignite Plate size Wheel base (mm) #discoblox
    Bont   95 n/a
    20 degree   105 n/a
        115 n/a

    mounting

    		   125 0
    bar   135 1
    modification   145 2
    custom   155 3
    order   165 4
        175 5
        185 6
        195 7
        205 7



    Impala Plate size Wheel base (mm) #discoblox size
      US2 /EU 33   1
      US3 / EU 34   1
      US4 / EU 35   2
      US5 / EU 36   2
      US6 / EU 37   3
      US7 / EU 38   3
      US8 / EU 39   3
      US9 / EU40   5
      US10 / EU41   6
      US11 / EU42   6



    Pilot Falcon Plate size Wheel base (mm) #discoblox
    16 degree 5.25 133 1
    lowrider only 5.5 140 2
      5.75 146 2
      6 152 3
      6.25 159 4
      6.5 165 4
      6.75 171 5
      7 178 6
      7.25 184 6
      7.5 191 7
      7.75 197 7
      8 203 n/a
      8.25 210 n/a
      8.5 216 n/a



    Prodigy Plate size Wheel base (mm) #discoblox size
    Bont 4.5 114 0
    20 degree 5 127 0
      5.5 140 1
      6 152 2
      6.5 165 3
      7 178 4
      7.5 191 5
      8 203 6





    Reactor Fuse Plate size Wheel base (mm) #discoblox size
    10 degree 3 132 1
    Radius king pin 4 140 2
    Lowrider  Optional 5 148 3
      6 156 3
      7 164 4
      8 168 5
      9 174 5
      10 180 6
      11 186 6
      12 192 7
      13 198 7






    Reactor Neo Plate size Wheel base (mm) #discoblox size
    15 degree 2 124 0
    Radius king pin 3 134 1
    Lowrider Optional 4 144 2
      5 150 3
      6 156 4
      7 162 4
      8 168 5
      9 174 6
      10 180 6
      11 186 7
      12 192 7




    Reactor Pro Plate size Wheel base (mm) #discoblox size
    15 degree 3 134 1
    Radius king pin 4 144 2
    Lowrider Optional 5 150 2
      6 156 3
      7 162 4
      8 168 5
      9 174 5
      10 180 6
      11 186 7
      12 192 7




    Rival Plate size Wheel base(mm) #discoblox size
    15 degree 2 128 0
    Radius king pin 3 134 1
    Lowrider 4 140 1
      5 146 2
      6 152 2
      7 158 3
      8 164 4
      9 170 4
      10 176 5
      11 182 6
      12 188 6
      13 194 7





    Rock Plate Size Wheel base (mm) #discoblox size
    10 degree 1 107 0
    Sure grip 2 117 0
      3 127 0
      4 137 1
      5 147 2
      6 157 3
      7 168 4
      8 178 5
      9 188 6



    Roll Line Plate size Wheel base (mm) #discoblox size
    Variant   130 0
    Blaster   140 1
        150 2
        160 3
        170 4
        180 5
        190 6
        200 7

    Requires mounting bar modification and RollLine cushion.

    RollLine is always a custom order.



    Sunlite Plate size Wheel base (mm) #discoblox size
    10 degree 2 143 2
    lowrider 3 152 3
      4 154 3
      5 170 4
      6 179 5
      7 189 6
      8 198 7
      9 208 n/a







    Thrust Plate size Wheel base #discoblox
    15 degree 2 116 0
    Moxi nylon plate 3 126 1
    Powerdyne 4 136 2
    Regular or 5 149 3
    Lowrider 6 158 4
      7 168 5
      8 178 5
      9 188 7
                                      10                200                 7



    Triton Plate size Wheel base (mm) #discoblox size
    15 degree 4 140 2
    Moxi metal  5 146 3
    Powerdyne 6 152 4
      7 158 4
      8 164 5
      9 170 5
      10 176 6
      11 182 6
      12 188 7
      13 194 7






If you need any help working out what Discoblox are right for you please don't hesitate to contact us.
